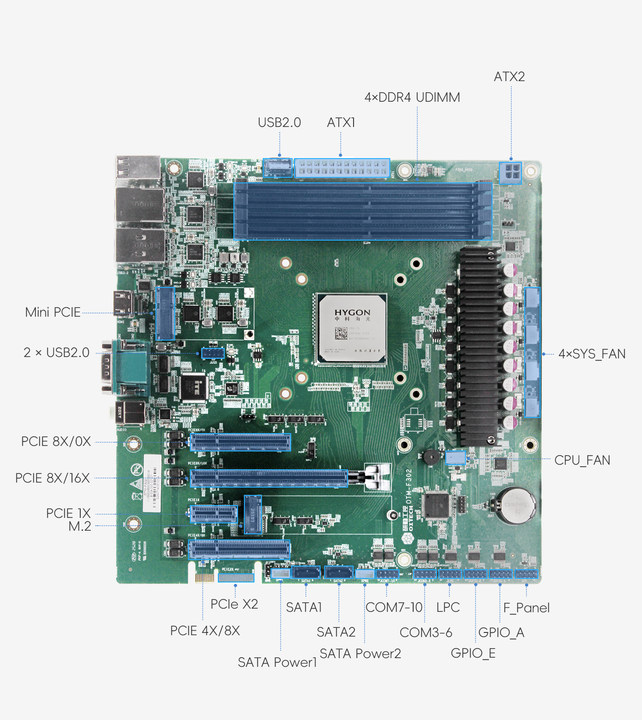

HG3350 Processor
Dual Channel UDIMM DDR4 up to 64GB
1x M.2_2280, supports NVMe/SATA SSD, 1/2x SATA3.0
1x PCIe X16 slot, 2x PCIe X8 slot, 1x PCIe X1 slot, 1x Mini PCIe
2x GbE LAN, 10x RS232
2x USB3.0, 9x USB2.0, 1x LPC, 16bit GPIO
1x Line-out, 1x Mic-in
Power Input: 24-pin ATX + 12V 2*2 Pin ATX
| 处理器 | CPU | 海光HG3350 |
| Core Number | 8 | |
| # of P-cores | ||
| # of E-cores | ||
| # of Low Power E-cores | ||
| Thread Number | 16 | |
| Performance-core Turbo Frequency | ||
| Efficient-core Turbo Frequency | ||
| Low Power Efficient-core Max Turbo Frequency | ||
| Max Turbo Frequency | ||
| Performance-core Base Frequency | ||
| Efficient-core Base Frequency | ||
| Low Power Efficient-core Base Frequency | ||
| Processor Base Frequency | 3.0GHz | |
| Socket | BGA | |
| Chipset | ||
| NPU | ||
| Cache (MB) | L3 Cache: 16MB | |
| CPU TDP | 65W | |
| BIOS | 百敖 | |
| 内存 | Technology | Dual channel DDR4 3200 MHz |
| Max capacity | 64GB | |
| ECC Support | YES | |
| Socket | 4x UDIMM 288Pin | |
| Internal Memory | ||
| 显示 | Controller | |
| Graphic Engine | ||
| H/ W Video Codec | ||
| LCD (TTL/ LVDS/ eDP) | ||
| ADI (BNC/ VGA/ DVI-I) | ||
| DDI (DVI-D/ HDMI/ DP) | 1x HDMI (Via Expansion GPU) | |
| Multiple Display | ||
| 以太网控制器 | Controller | LAN1/LAN2： Intel® Ethernet I210 or RTL8111 |
| Speed | 10/ 100/ 1000 Mbps | |
| Connector | 2x RJ45 | |
| 音频 | Audio Interface | USB |
| CODEC | KT0206 | |
| Amplifier | ||
| Connector | 2 (Line out, Mic in) | |
| 扩展 | PCI Express x16 | 1x PCIe 4.0 x16 slot （x8/X16 Link） |
| PCI Express x8 | 1x PCIe 4.0 x8 slot （x8/NA Link） 1x PCIe 4.0 x8 slot （x4/X8 Link） | |
| PCI Express x4 | ||
| PCI Express x2 | 1x PCIe X2 Goldfinger | |
| PCI Express x1 | 1 | |
| PCI | ||
| Mini PCIe | 1 (For GPU/Wi-Fi/BT) | |
| M.2 Key-E | ||
| M.2 Key-B | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Type-C | ||
| TPM | ||
| Bus interface | ||
| 存储 | Memory Card | |
| SATA | 1/2x SATA3.0 | |
| mSATA | ||
| M.2 Key-B | ||
| M.2 Key-M | 1x M.2_2280, support NVMe&SATA | |
| RAID | ||
| 输入输出 | Display | |
| USB 2.0 | 9 | |
| USB 3.2 Gen 1 | 2 | |
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | 10 (10x RS232) | |
| GPIO | 16bit | |
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| LPT | ||
| Smart Fan | 1x CPU_FAN, 4x SYS_FAN | |
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| 前面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||

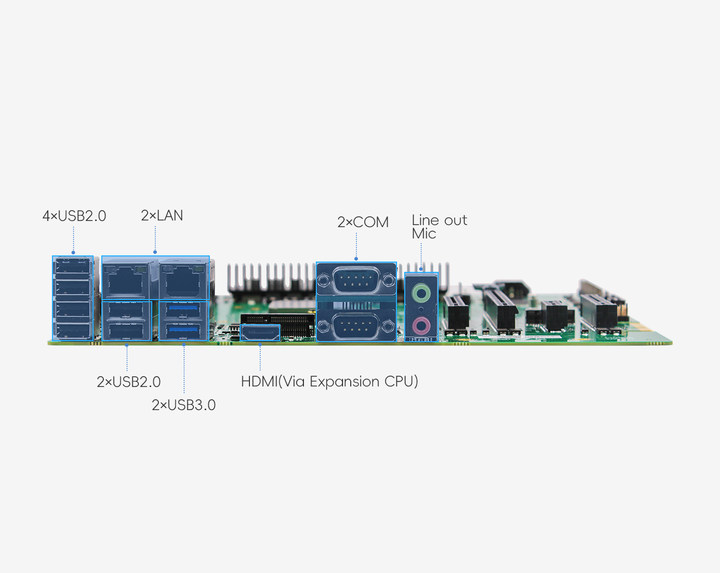

| 后置面板 | Display | 1x HDMI (Via Expansion GPU) |
| RJ-45 | 2 | |
| USB 2.0 | 6 | |
| USB 3.2 Gen 1 | 2 | |
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | 2x RS232 | |
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | 1x Line-out, 1x MIC-in | |
| LPT | ||
| TF Card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 侧面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 其他 | LED Indicators | SYS, HDD |
| Control | ON/ OFF, Reset | |
| Watchdog Timer | ||
| 电源 | Power Type | ATX Mode |
| Connector | MB 24 Pin + CPU 4 Pin | |
| Power Consumption (Full Load) | ||
| Input Voltage | ||
| Battery | Lithium 3V/ 200 mAh | |
| 使用环境 | Operational Temperature | -10℃ ~ 60℃ (14℉ ~ 140℉) |
| Non-Operational Temperature | -20℃ ~ 70℃ (-4℉ ~ 158℉) | |
| Relative Humidity | 0%~95%@40℃ (non-condensing) | |
| 支持系统 | Microsoft Windows | YES |
| Linux | YES | |
| Android | ||
| BSD | ||
| 国产操作系统 | UOS/银河麒麟 | |
| 物理规格 | Mounting | |
| Dimension(mm) | ||
| Dimension(WxHxD mm) | 244mm x 244mm | |
| Weight (Kg) |
