Intel® LGA1151 Desktop Processor
Intel® H110 Chipset
Dual channel DDR4 U-DIMM up to 64GB

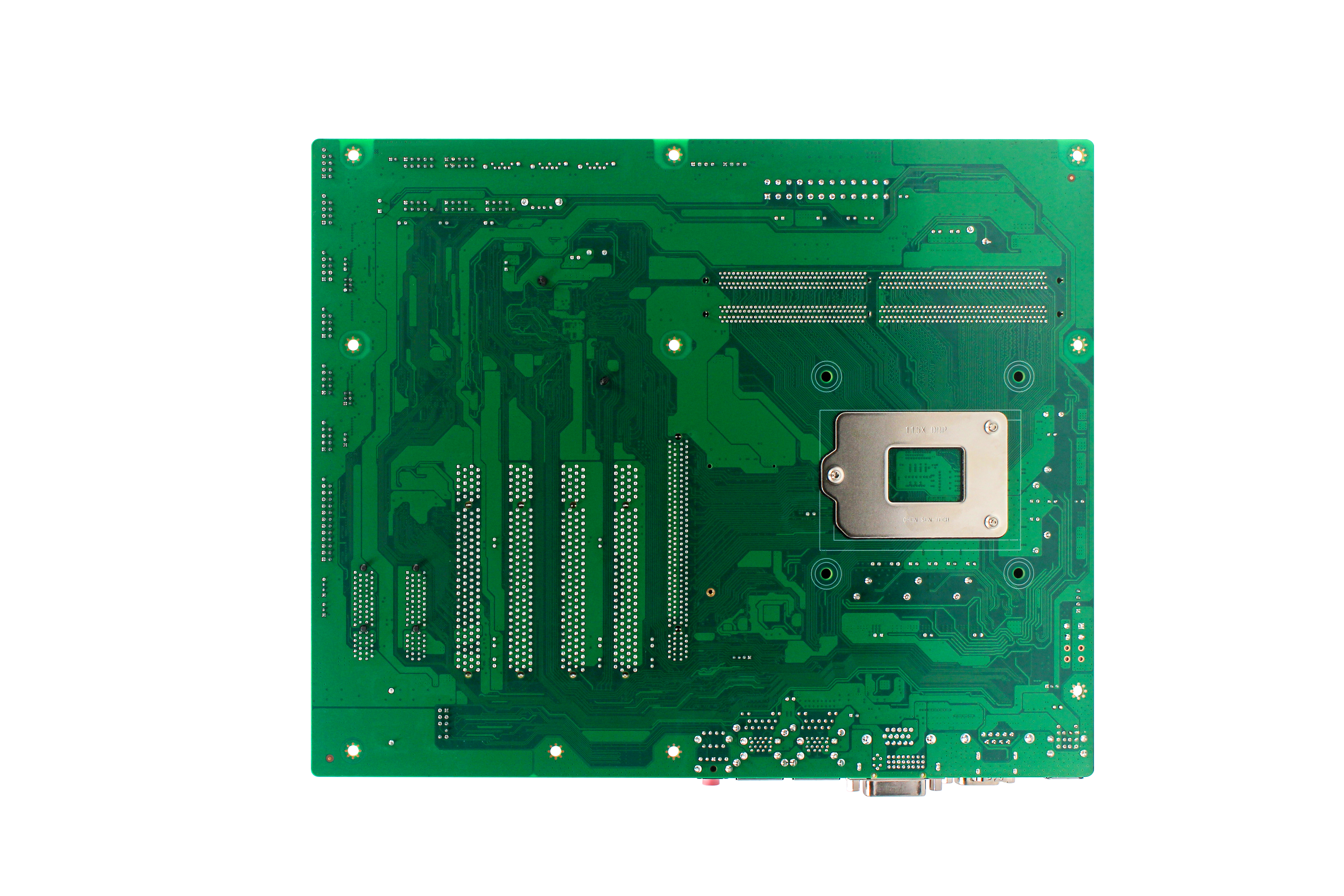

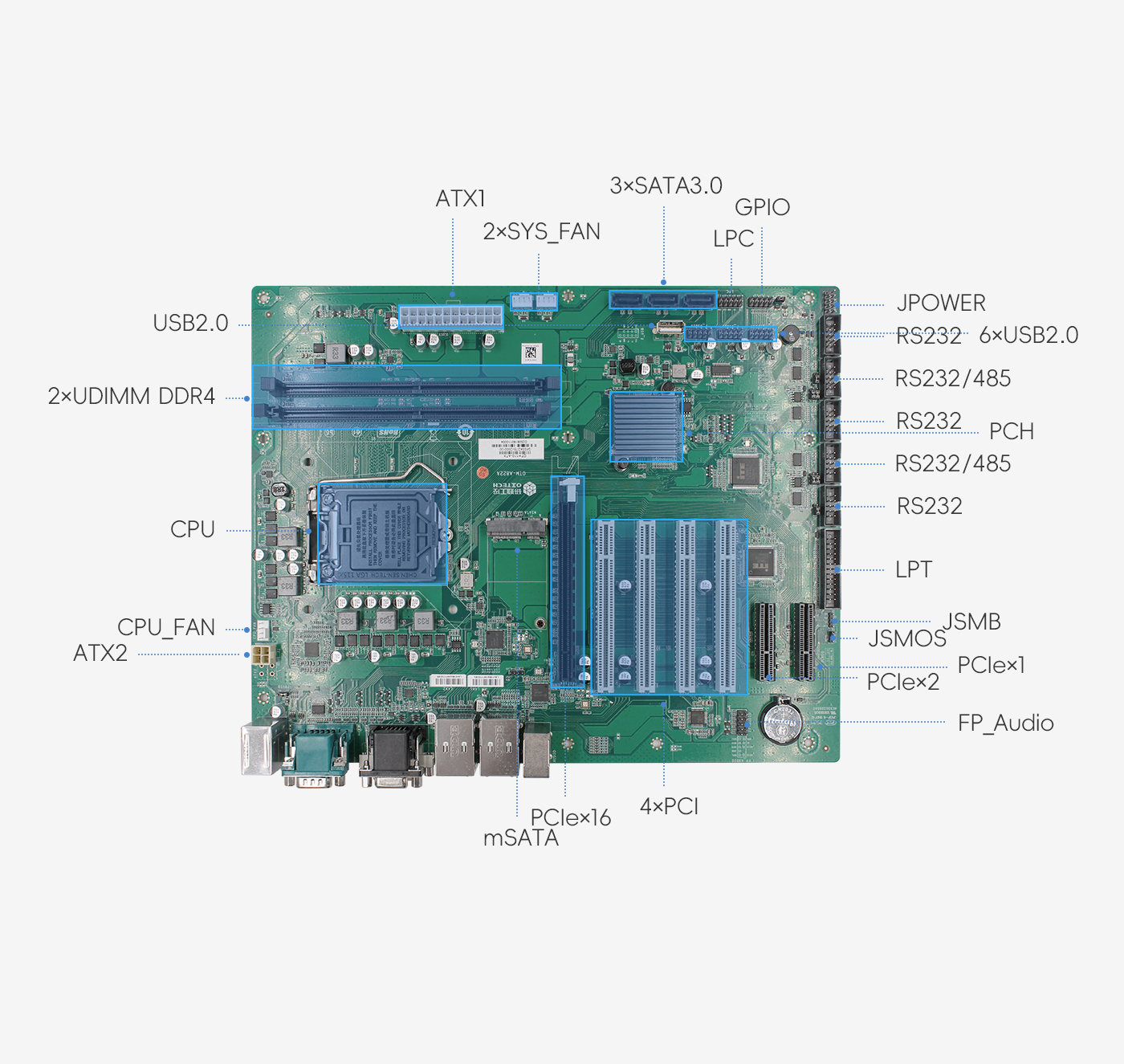

1x mSATA, 3x SATA3.0
1x HDMI, 1x VGA, 1x DVI, max 2 displays at once
2x GbE LAN, 13x USB, 6x COM, 1x PS2, 8bit GPIO
1x Line-in, 1x Line-out, 1x Mic-in
1x PCIe X16 slot, 2x PCIe X4 slot, 4x PCI slot
Power Input: 24-pin ATX + 4-Pin ATX
| 处理器 | CPU | Intel® 6-9th Gen. Sky Lake/Kaby Lake/Coffee lake CPU |
| Core Number | ||
| # of P-cores | ||
| # of E-cores | ||
| # of Low Power E-cores | ||
| Thread Number | ||
| Performance-core Turbo Frequency | ||
| Efficient-core Turbo Frequency | ||
| Low Power Efficient-core Max Turbo Frequency | ||
| Max Turbo Frequency | ||
| Performance-core Base Frequency | ||
| Efficient-core Base Frequency | ||
| Low Power Efficient-core Base Frequency | ||
| Processor Base Frequency | ||
| Socket | LGA1151 | |
| Chipset | Intel® H110 | |
| NPU | ||
| Cache (MB) | ||
| CPU TDP | ≤65W | |
| BIOS | AMI | |
| 内存 | Technology | Dual channel DDR4 2133/2400 MHz |
| Max capacity | 64GB | |
| ECC Support | NO | |
| Socket | 2x U-DIMM 288Pin | |
| Internal Memory | ||
| 显示 | Controller | Intel® HD/UHD Graphics |
| Graphic Engine | DirectX 12, OpenGL 4.5 | |
| H/ W Video Codec | ||
| LCD (TTL/ LVDS/ eDP) | ||
| ADI (BNC/ VGA/ DVI-I) | 1x VGA, 1x DVI | |
| DDI (DVI-D/ HDMI/ DP) | 1x HDMI | |
| Multiple Display | 2 | |
| 以太网控制器 | Controller | LAN 1: Intel I210AT (Realtek RTL8111H) LAN 2: Intel I210AT (Realtek RTL8111H) |
| Speed | LAN 1: 10/100/1000 Mbps LAN 2: 10/100/1000 Mbps | |
| Connector | 2x RJ45 | |
| 音频 | Audio Interface | HD Audio |
| CODEC | Realtek, High Definition Audio (HD) | |
| Amplifier | ||
| Connector | 1x Line-in, 1x Line-out, 1x Mic-in | |
| 扩展 | PCI Express x16 | 1 (x16 Link) |
| PCI Express x8 | ||
| PCI Express x4 | 2 (1 x2 Link, 1 x1 Link) | |
| PCI Express x2 | ||
| PCI Express x1 | ||
| PCI | 4 | |
| Mini PCIe | ||
| M.2 Key-E | ||
| M.2 Key-B | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Type-C | ||
| TPM | ||
| Bus interface | ||
| 存储 | Memory Card | |
| SATA | 3x SATA3.0 | |
| mSATA | 1x mSATA | |
| M.2 Key-B | ||
| M.2 Key-M | ||
| RAID | ||
| 输入输出 | Display | |
| USB 2.0 | 9 | |
| USB 3.2 Gen 1 | 4 | |
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | 6 (4x RS-232, 2x RS-232 /485) | |
| GPIO | 8 bit | |
| Digital I/ O | ||
| Bus interface | 1x LPC | |
| PS/ 2 | 1 | |
| LPT | 1 | |
| Smart Fan | 1x CPU_FAN, 2x SYS_FAN | |
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| 前面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||

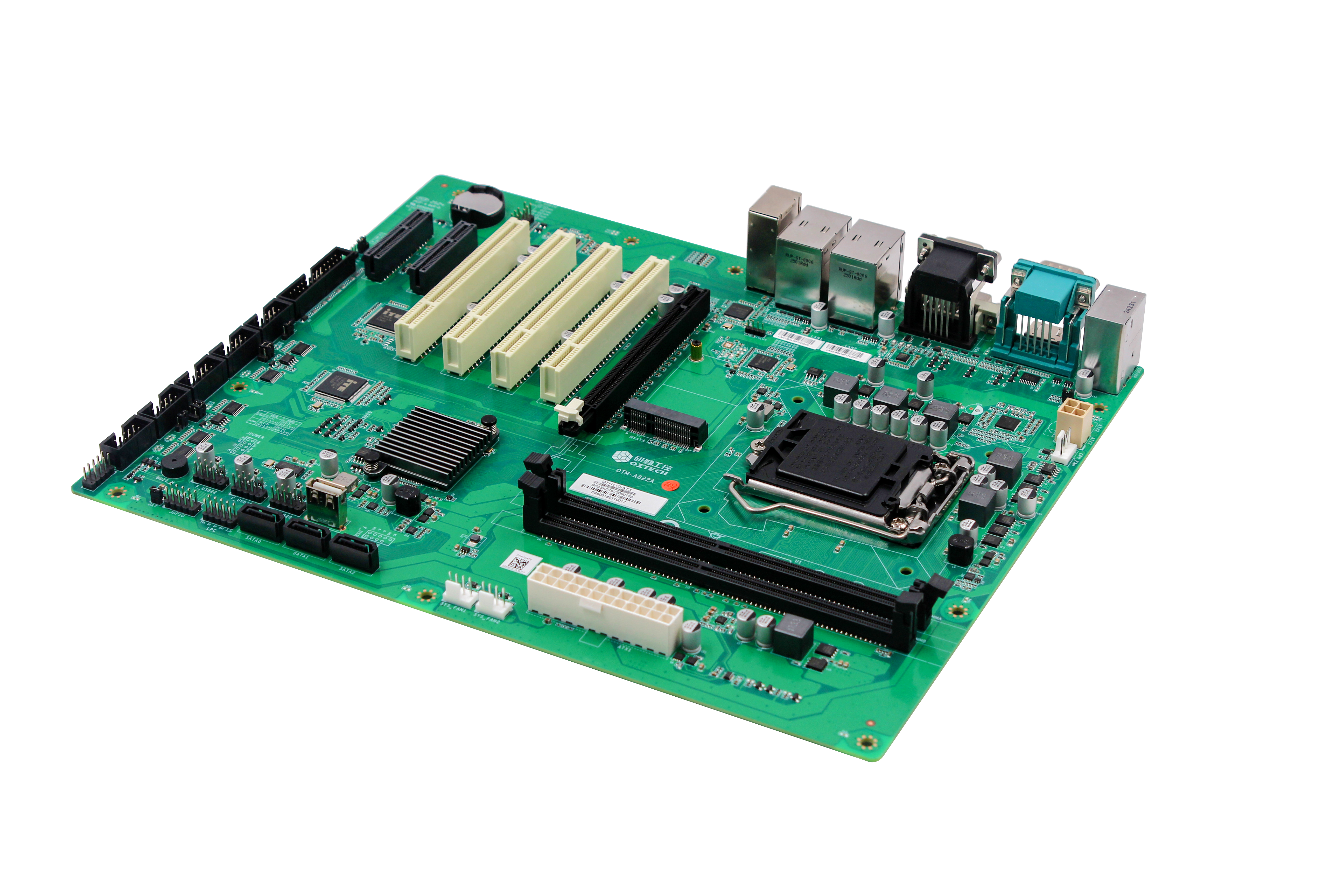

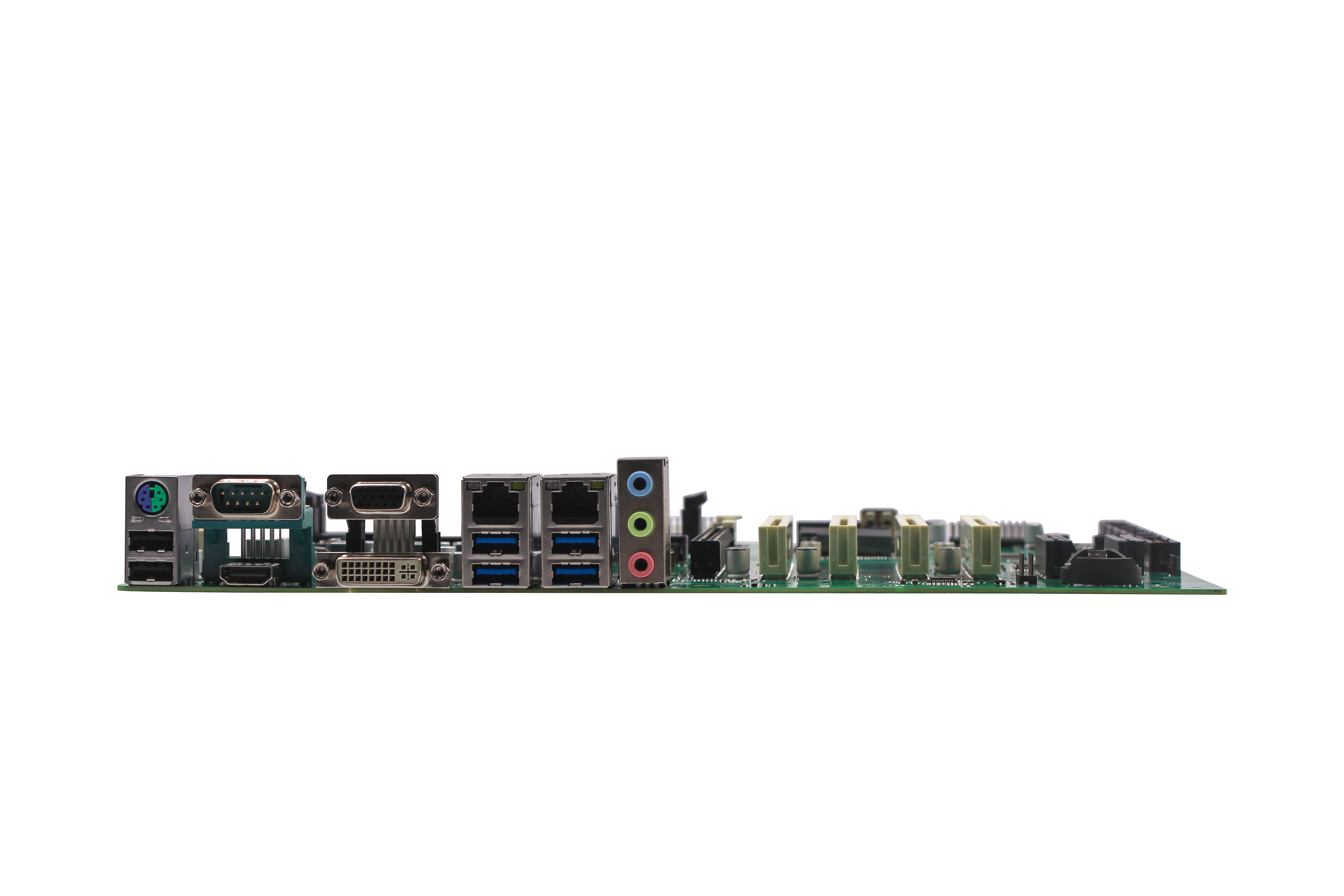

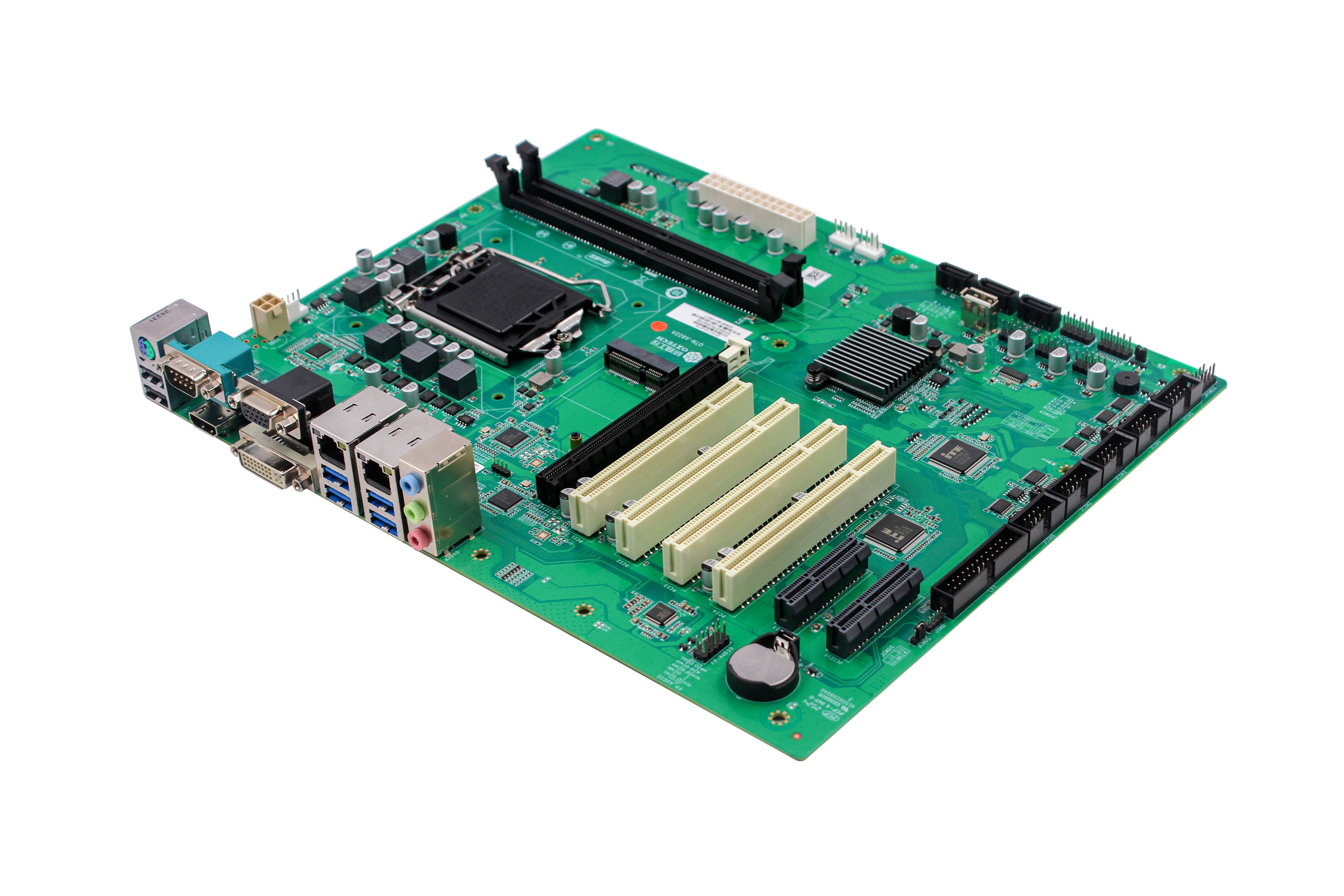

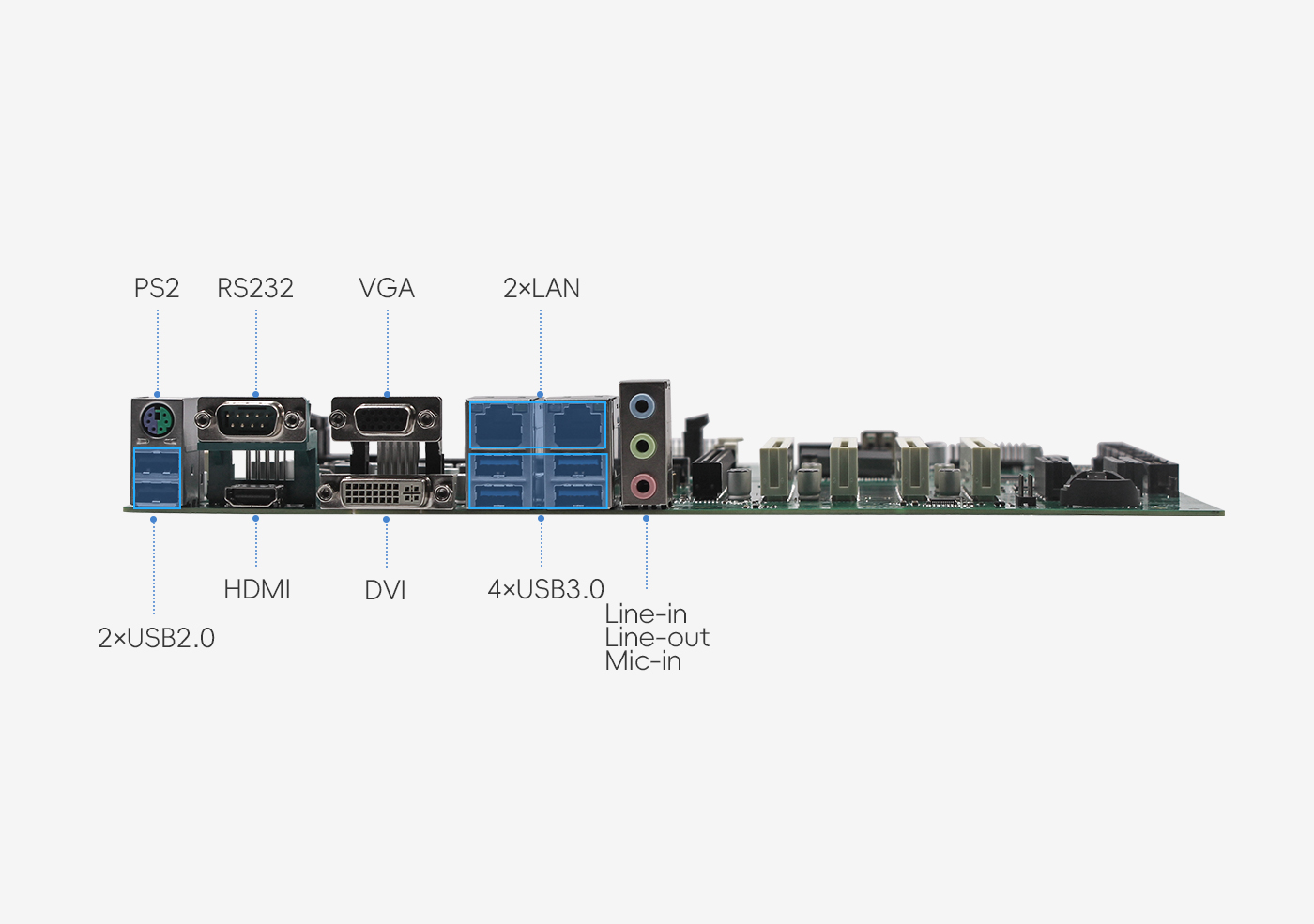

| 后置面板 | Display | 1x HDMI, 1x VGA, 1x DVI |
| RJ-45 | 2 | |
| USB 2.0 | 2 | |
| USB 3.2 Gen 1 | 4 | |
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | 1（RS232） | |
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | 1 | |
| Audio | 1x Line-in, 1x Line-out, 1x Mic-in | |
| LPT | ||
| TF Card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 侧面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 其他 | LED Indicators | |
| Control | CLR_CMOS | |
| Watchdog Timer | Support | |
| 电源 | Power Type | ATX Mode |
| Connector | MB 24 Pin + CPU 4 Pin | |
| Power Consumption (Full Load) | ||
| Input Voltage | ||
| Battery | Lithium 3V/ 200 mAh | |
| 使用环境 | Operational Temperature | -20℃ ~ 60℃ （-4℉ ~ 140℉） |
| Non-Operational Temperature | -40℃ ~ 85℃ (-40℉ ~ 185℉) | |
| Relative Humidity | 10%`95%@40℃ (non-condensing) | |
| 支持系统 | Microsoft Windows | Win7, Win10 |
| Linux | yes | |
| Android | ||
| BSD | ||
| 国产操作系统 | ||
| 物理规格 | Mounting | |

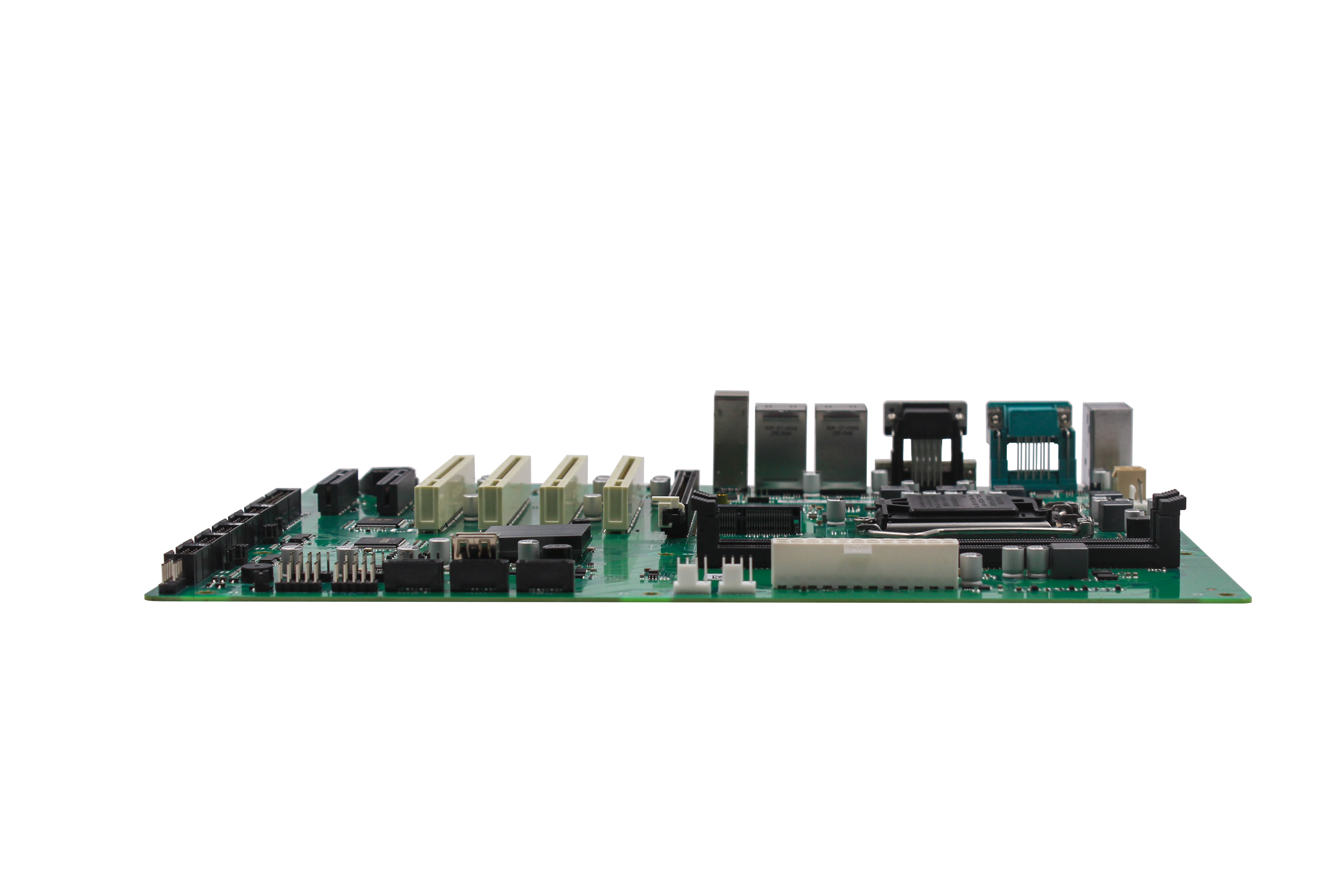

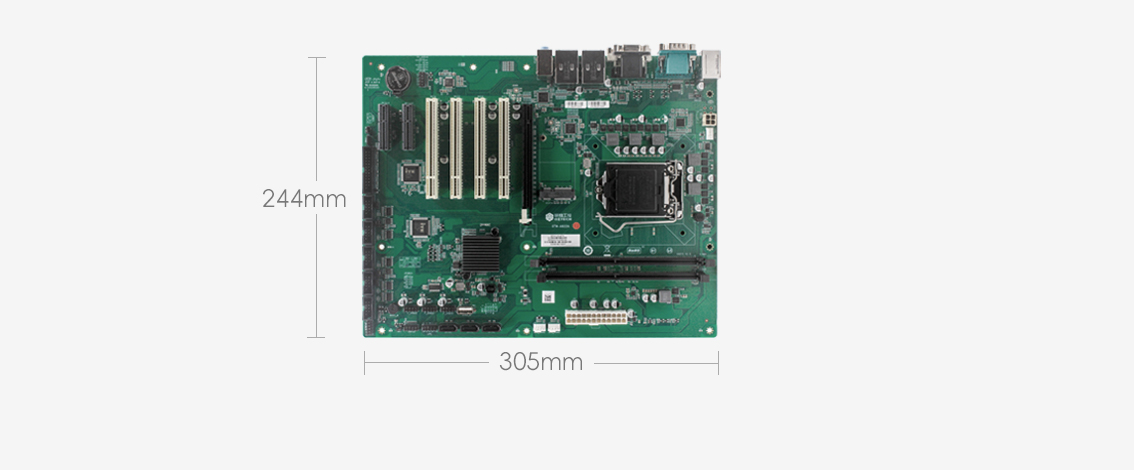

| Dimension(mm) | 305mm x 244mm | |
| Dimension(WxHxD mm) | ||
| Weight (Kg) | TBD |
