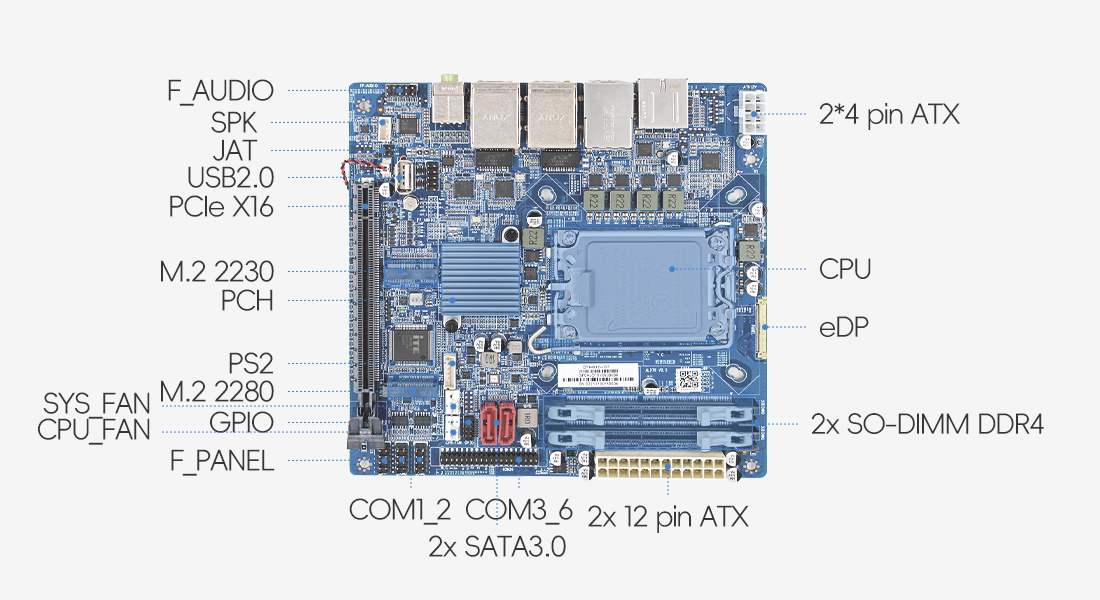

Dual Channel SO-DIMM DDR4 up to 64GB
1x M.2_2280, supports NVMe/SATA SSD
2x SATA3.0, 1x PCIe X16
1x HDMI, 1x DP, 1x eDP
1x M.2 E-Key, supports Wi-Fi/BT module
2x 2.5GbE LAN, 1x GbE LAN, supports PXE, WOL
4x USB3.0, 5x USB2.0, 1x PS2, 8bit GPIO
1x Line-out, 1x Mic-in
1x RS-485 or RS-232, 5x RS-232
Power Input: 24-pin ATX + 12V 2*4 Pin ATX
| 处理器 | CPU | Intel® 12th Gen. Alder Lake-S CPU |
| Core Number | ||
| # of P-cores | ||
| # of E-cores | ||
| # of Low Power E-cores | ||
| Thread Number | ||
| Performance-core Turbo Frequency | ||
| Efficient-core Turbo Frequency | ||
| Low Power Efficient-core Max Turbo Frequency | ||
| Max Turbo Frequency | ||
| Performance-core Base Frequency | ||
| Efficient-core Base Frequency | ||
| Low Power Efficient-core Base Frequency | ||
| Processor Base Frequency | ||
| Socket | LGA1700 | |
| Chipset | Intel® H610 | |
| NPU | ||
| Cache (MB) | ||
| CPU TDP | ≤65W | |
| BIOS | AMI | |
| 内存 | Technology | Dual channel DDR4 3200 MHz |
| Max capacity | 64 GB | |
| ECC Support | ||
| Socket | 2x SO-DIMM 260Pin | |
| Internal Memory | ||
| 显示 | Controller | Intel® UHD Graphics 770 |
| Graphic Engine | DirectX 12, OpenGL 4.5, OpenCL 3.0 | |
| H/ W Video Codec | ||
| LCD (TTL/ LVDS/ eDP) | 1x eDP | |
| ADI (BNC/ VGA/ DVI-I) | ||
| DDI (DVI-D/ HDMI/ DP) | 1x HDMI, 1x DP | |
| Multiple Display | 3 | |
| 以太网控制器 | Controller | LAN 1: Intel® Ethernet I226 LAN 2: Intel® Ethernet I226 LAN 3: Intel® Ethernet I219 |
| Speed | LAN 1: 10/100/1000/2500 Mbps LAN 2: 10/100/1000/2500 Mbps LAN 3: 10/100/1000 Mbps | |
| Connector | 3x RJ45 | |
| 音频 | Audio Interface | HD Audio |
| CODEC | Realtek, High Definition Audio (HD) | |
| Amplifier | 2x 3W, L&R | |
| Connector | 1x Line-out, 1x Mic-in, 1x F_Audio | |
| 扩展 | PCI Express x16 | 1 |
| PCI Express x8 | ||
| PCI Express x4 | ||
| PCI Express x2 | ||
| PCI Express x1 | ||
| PCI | ||
| Mini PCIe | ||
| M.2 Key-E | Type 2230: Wi-Fi/BT | |
| M.2 Key-B | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Type-C | ||
| TPM | optional | |
| Bus interface | ||
| 存储 | Memory Card | |
| SATA | 2x SATA3.0 | |
| mSATA | ||
| M.2 Key-B | ||
| M.2 Key-M | Type 2280: NVMe/SATA SSD | |
| RAID | ||
| 输入输出 | Display | |
| USB 2.0 | 5 | |
| USB 3.2 Gen 1 | 4 | |
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | 1x RS-485 or RS-232, 5x RS-232 | |
| GPIO | 8bit | |
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | 1 | |
| LPT | ||
| Smart Fan | 1x CPU_FAN, 1x SYS_FAN | |
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||

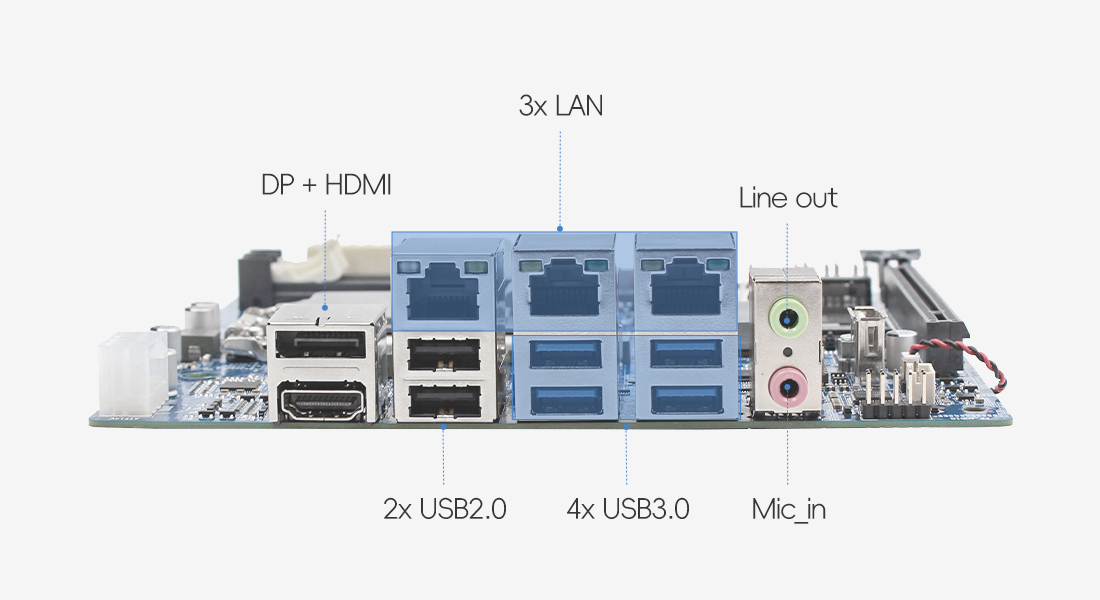

| 前面板 | Display | 1x HDMI2.0, 1x DP |
| RJ-45 | 3 | |
| USB 2.0 | 2 | |
| USB 3.2 Gen 1 | 4 | |
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | 1x Line-out, 1x Mic-in | |
| LPT | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 后置面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF Card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 侧面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 其他 | LED Indicators | |
| Control | ||
| Watchdog Timer | Support | |
| 电源 | Power Type | ATX Mode |
| Connector | 24-pin ATX + 12V 2*4 Pin ATX | |
| Power Consumption (Full Load) | ||
| Input Voltage | ||
| Battery | Lithium 3V/ 200 mAh | |
| 使用环境 | Operational Temperature | -20℃ ~ 60℃ （-4℉ ~ 140℉） |
| Non-Operational Temperature | -40℃ ~ 80℃ (-40℉ ~ 176℉) | |
| Relative Humidity | 10%`95%@40℃ (non-condensing) | |
| 支持系统 | Microsoft Windows | 10, 11 |
| Linux | Yes | |
| Android | ||
| BSD | ||
| 国产操作系统 | ||
| 物理规格 | Mounting | |

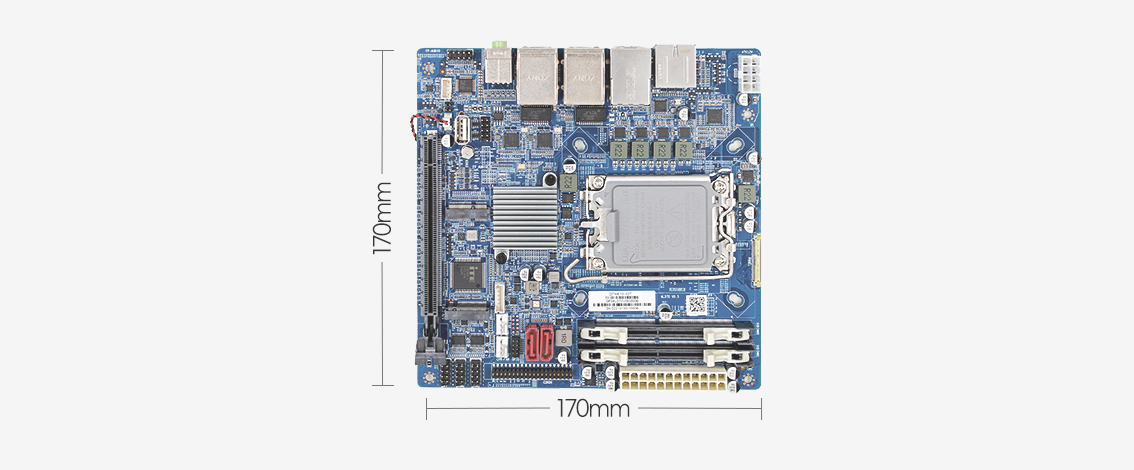

| Dimension(mm) | 170mm x 170mm | |
| Dimension(WxHxD mm) | ||
| Weight (Kg) |
