Dual Channel SO-DIMM DDR5 up to 96GB
3x DDI,1x LVDS, up to 4 independent displays
1x PEG Gen4 X8 (H Series CPU only)
2x PEG Gen4 X4, PCIe Gen4 up 8 lanes
1x Intel I226 Controller
Up to 2x USB4/TBT4, 4x USB3.2, 8x USB2.0
Up to 2x SATA, 2x COM, 8bit GPIO, HDA, CPU_FAN
SPI, TPM2.0, SMBUs, LPC, I2C

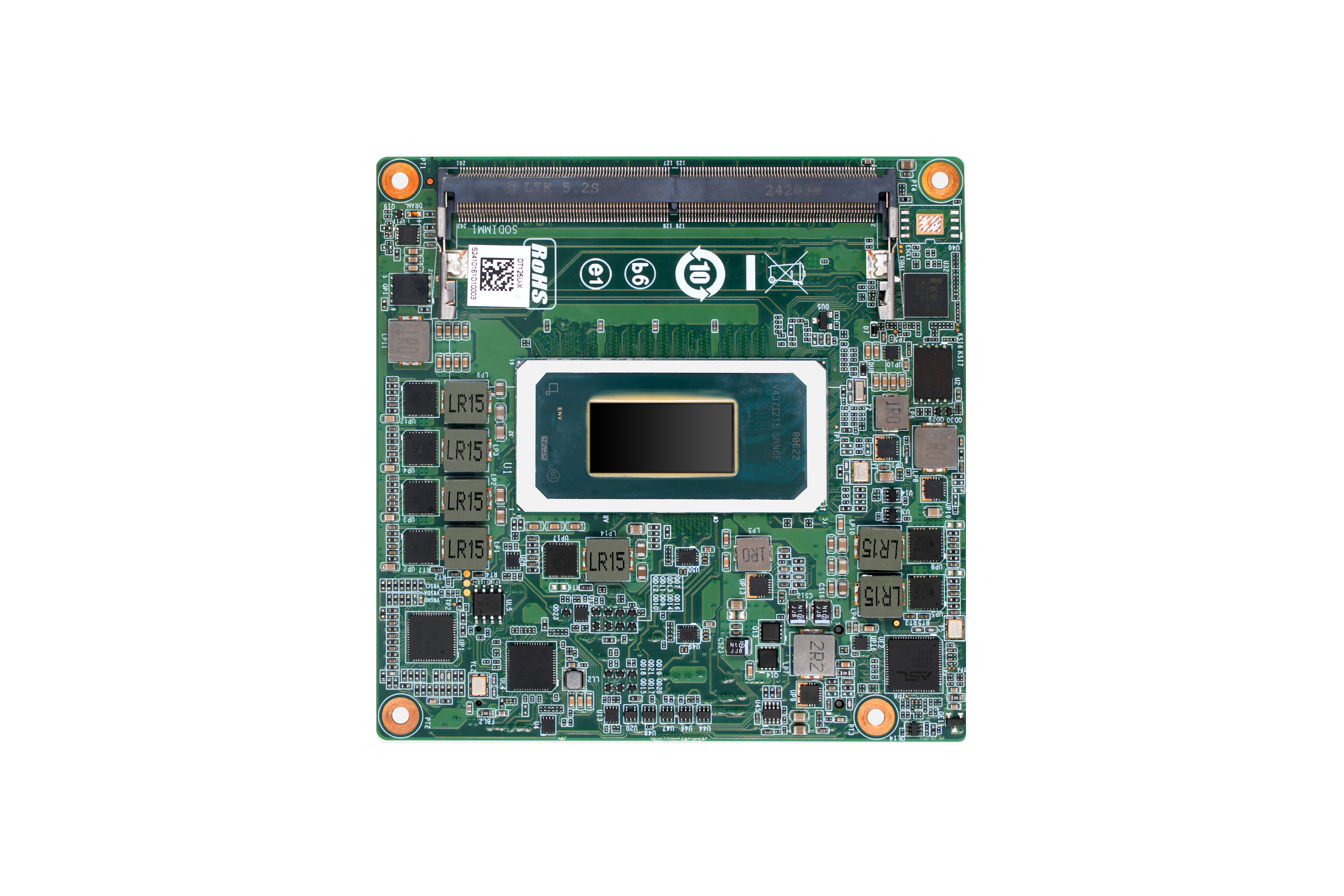

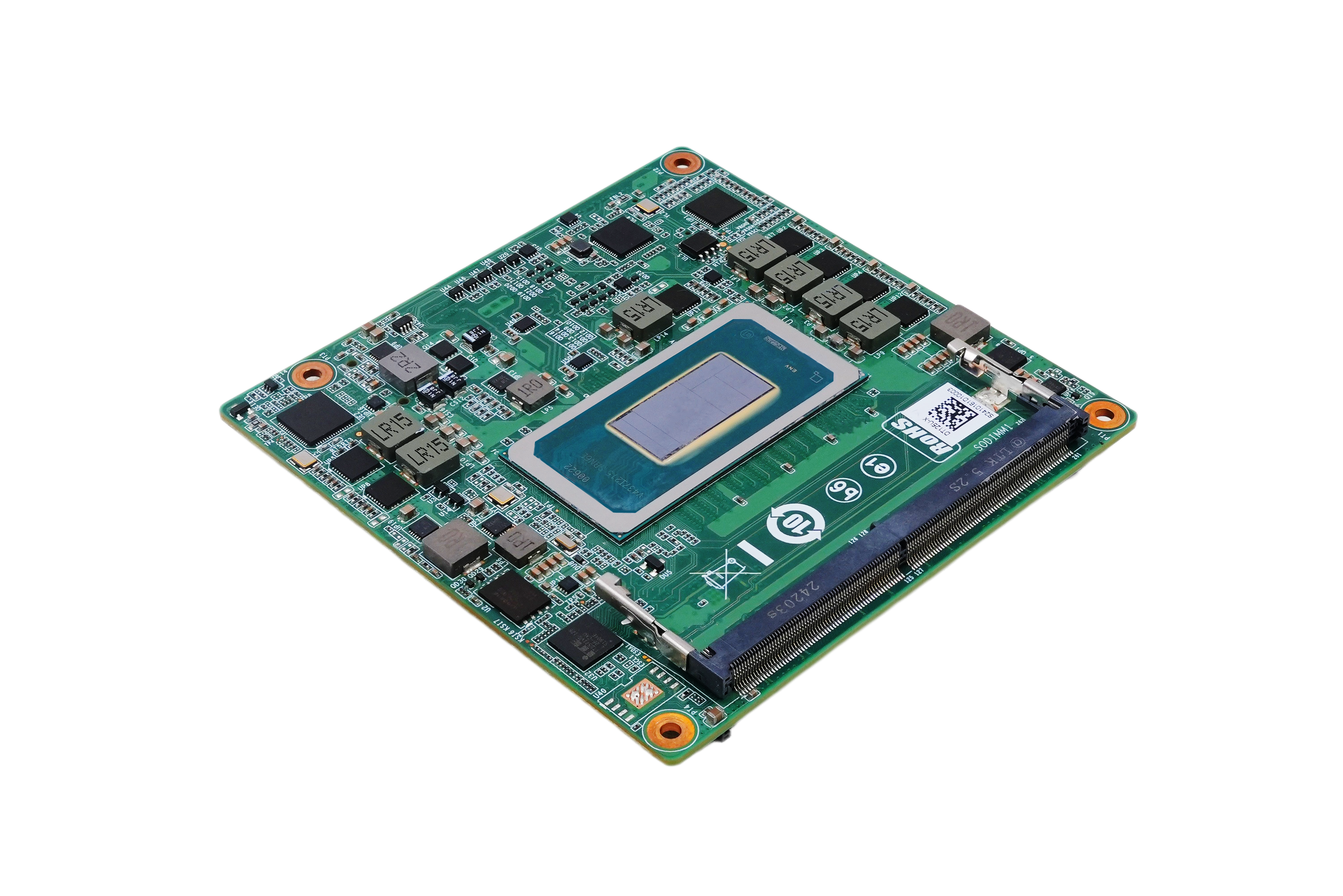

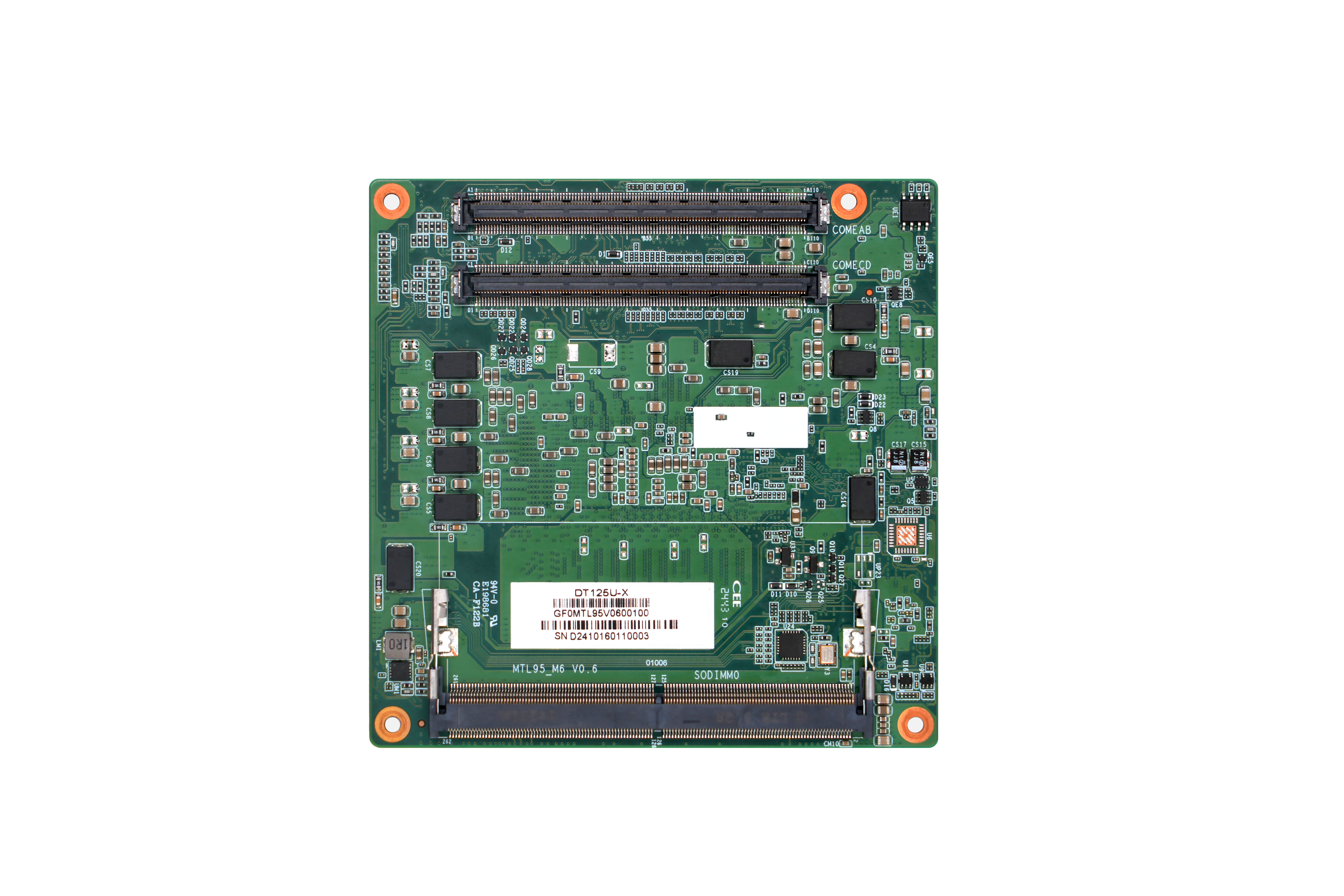

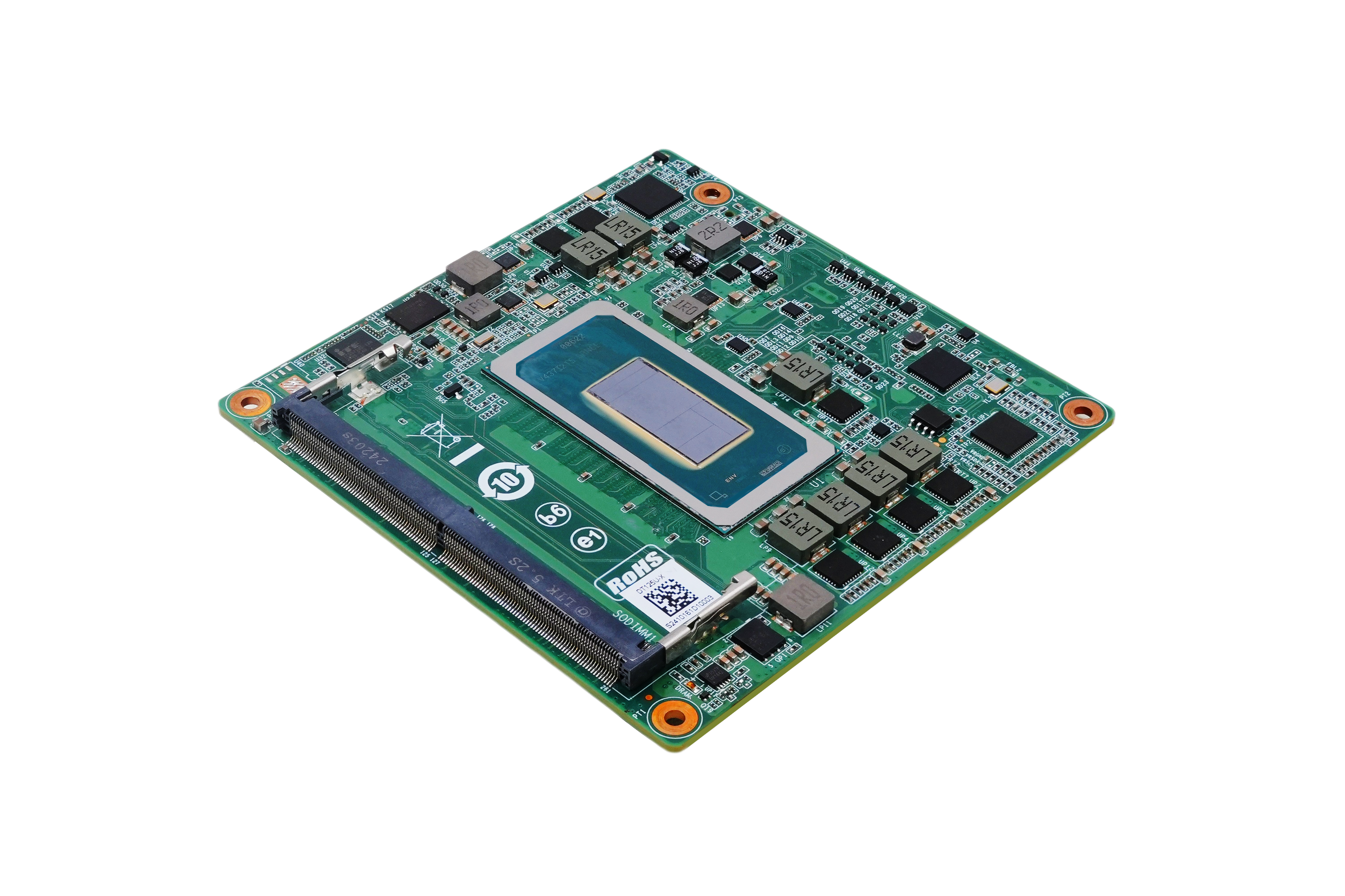

COM Express® Module Type 6
| 处理器 | CPU | Intel® Core™ Ultra 7 155H Intel® Core™ Ultra 5 125H |
| Core Number | 16 14 | |
| # of P-cores | 6 4 | |
| # of E-cores | 8 8 | |
| # of Low Power E-cores | 2 2 | |
| Thread Number | 22 18 | |
| Performance-core Turbo Frequency | 4.8 GHz 4.5 GHz | |
| Efficient-core Turbo Frequency | 3.8 GHz 3.6 GHz | |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz | |
| Max Turbo Frequency | 4.8 GHz 4.5 GHz | |
| Performance-core Base Frequency | 1.4 GHz 1.2 GHz | |
| Efficient-core Base Frequency | 900 MHz 700 MHz | |
| Low Power Efficient-core Base Frequency | 700 MHz | |
| Processor Base Frequency | 1.4 GHz 1.2 GHz | |
| Socket | FCBGA2049 | |
| Chipset | / | |
| NPU | Intel® AI Boost | |
| Cache (MB) | 24 MB Intel® Smart Cache 18 MB Intel® Smart Cache | |
| CPU TDP | Processor Base Power: 28 W, Maximum Turbo Power: 115 W, Minimum Assured Power: 20 W | |
| BIOS | AMI | |
| 内存 | Technology | Dual channel DDR5 5600 MHz |
| Max capacity | 96GB | |
| ECC Support | No | |
| Socket | 2x SO-DIMM 262Pin | |
| Internal Memory | ||
| 显示 | Controller | Intel® Arc™ graphics |
| Graphic Engine | DirectX 12.2, OpenGL 4.6, OpenCL 3.0 | |
| H/ W Video Codec | ||
| LCD (TTL/ LVDS/ eDP) | LVDS: 1920x1200@60Hz | |
| ADI (BNC/ VGA/ DVI-I) | ||
| DDI (DVI-D/ HDMI/ DP) | HDMI: 4096x2304@60Hz, DP: 4096x2304@60HZ | |
| Multiple Display | 4 | |
| 以太网控制器 | Controller | 1x Intel i226 Controller |
| Speed | 10/ 100/ 1000/ 2500 Mbps | |
| Connector | / | |
| 音频 | Audio Interface | HD Audio |
| CODEC | / | |
| Amplifier | ||
| Connector | / | |
| 扩展 | PCI Express x16 | |
| PCI Express x8 | ||
| PCI Express x4 | 1 | |
| PCI Express x2 | up to 2 | |
| PCI Express x1 | ||
| PCI | ||
| PEG Express x8 | 1 0 | |
| PEG Express x4 | 2 | |
| Mini PCIe | / | |
| M.2 Key-E | / | |
| M.2 Key-B | / | |
| TF card Slot | / | |
| SIM Card Slot | / | |
| Type-C | / | |
| TPM | TPM2.0 | |
| Bus interface | / | |
| 存储 | Memory Card | / |
| SATA | up to 2 | |
| mSATA | / | |
| M.2 Key-B | / | |
| M.2 Key-M | / | |
| RAID | / | |
| 输入输出 | Display | |
| USB 2.0 | 8 | |
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | 4 | |
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | 2 | |
| GPIO | 8 bit | |
| Digital I/ O | ||
| Bus interface | SMBus, I2C Bus, SPI Bus, LPC | |
| PS/ 2 | ||
| LPT | ||
| Smart Fan | CPU_FAN | |
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| 前面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 后置面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF Card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 侧面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 其他 | LED Indicators | / |
| Control | / | |
| Watchdog Timer | Support | |
| 电源 | Power Type | ATX: Vin, VSB; AT: Vin |

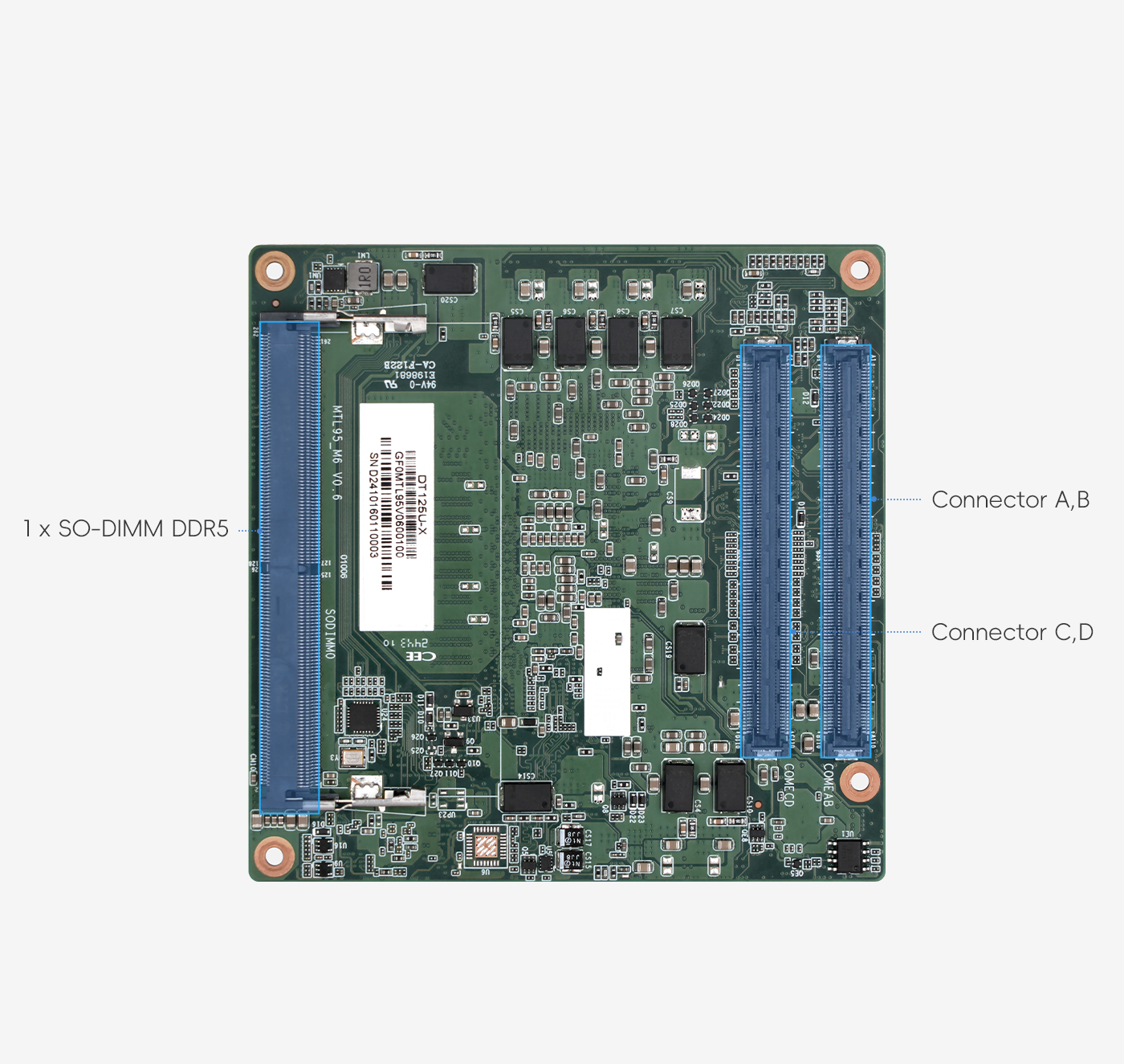

| Connector | COM Express® Type 6 connector | |
| Power Consumption (Full Load) | ||
| Input Voltage | Vin: 8.5V~20V; VSB: 4.75V~5.25V; RTC Battery: 2.0V~3.3V | |
| Battery | ||
| 使用环境 | Operational Temperature | -20℃ ~ 60℃ （-4℉ ~ 140℉） |
| Non-Operational Temperature | -40℃ ~ 85℃ (-40℉ ~ 185℉) | |
| Relative Humidity | Operating: 40℃ @95% relative humidity, non-condensing Storage: 60℃ @95% relative humidity, non-condensing | |
| 支持系统 | Microsoft Windows | 10, 11 |
| Linux | Yes | |
| Android | ||
| BSD | ||
| 国产操作系统 | ||
| 物理规格 | Mounting | |

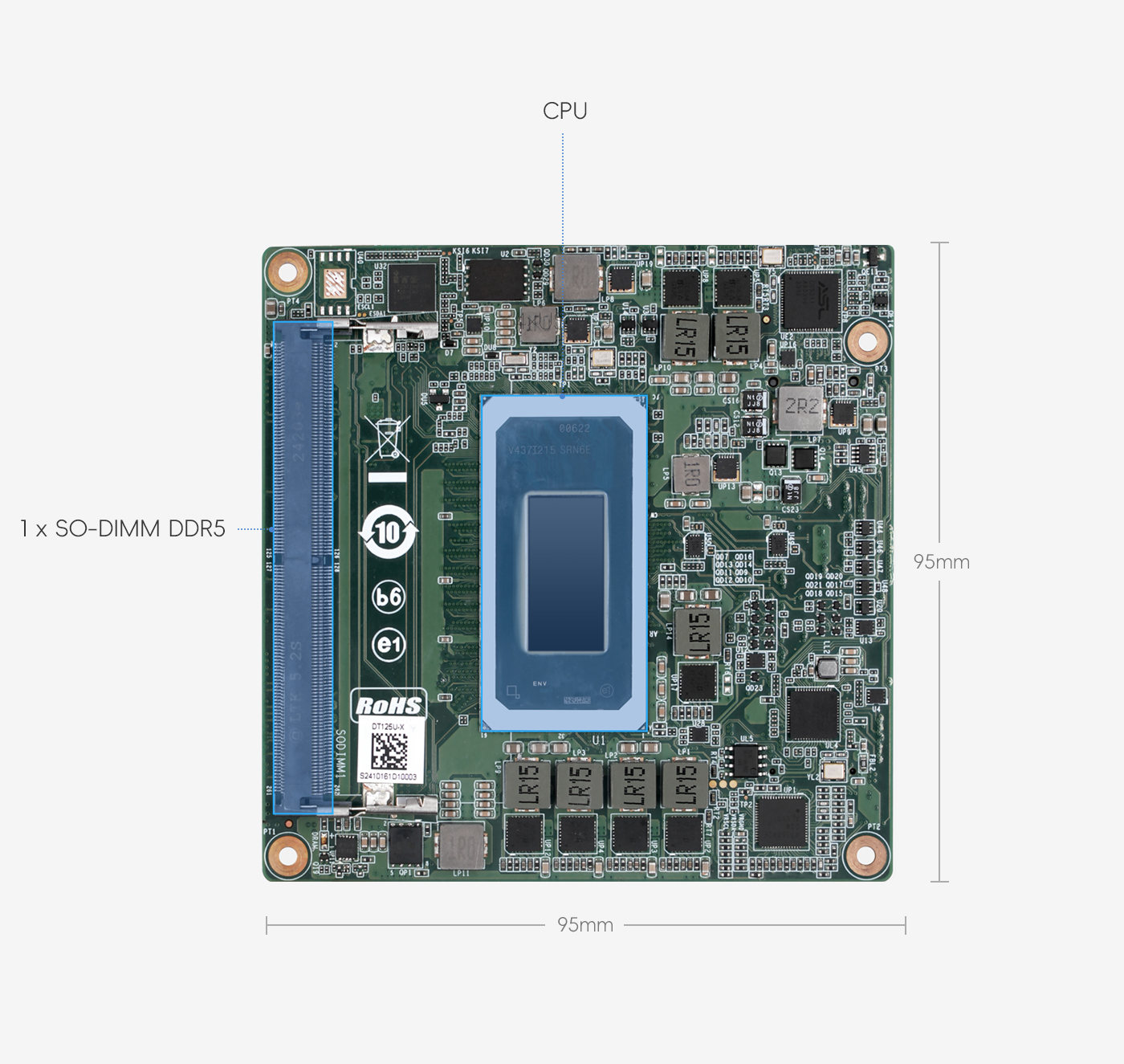

| Dimension(mm) | 95mm x 95mm | |
| Dimension(WxHxD mm) | ||
| Weight (Kg) | TBD |
