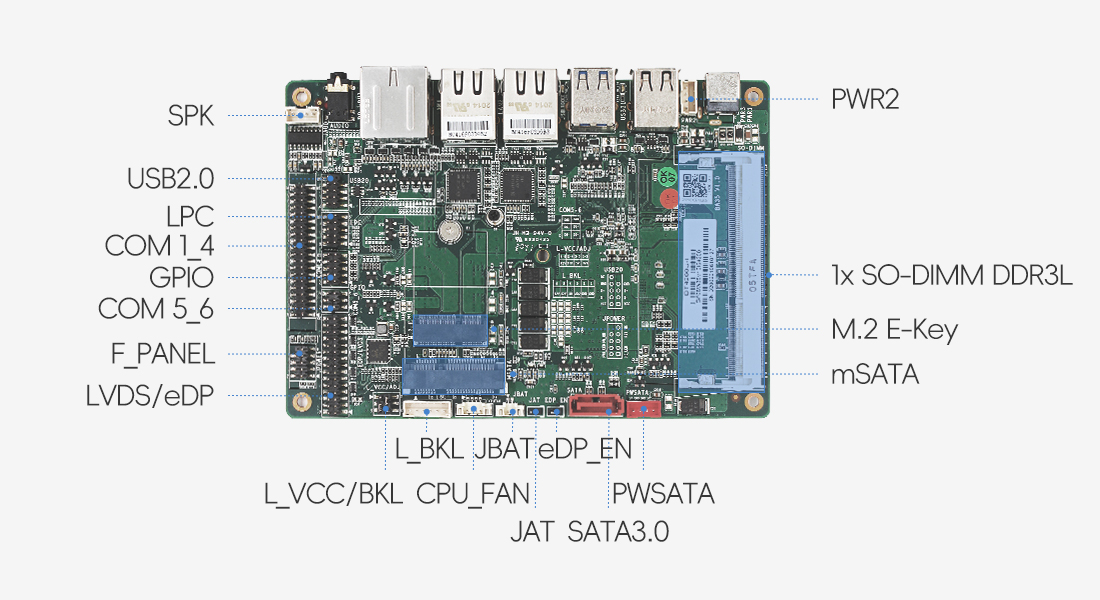

Single Channel SO-DIMM DDR3L up to 8GB
1x mSATA, Supports SSD/4G module, 1x SATA3.0

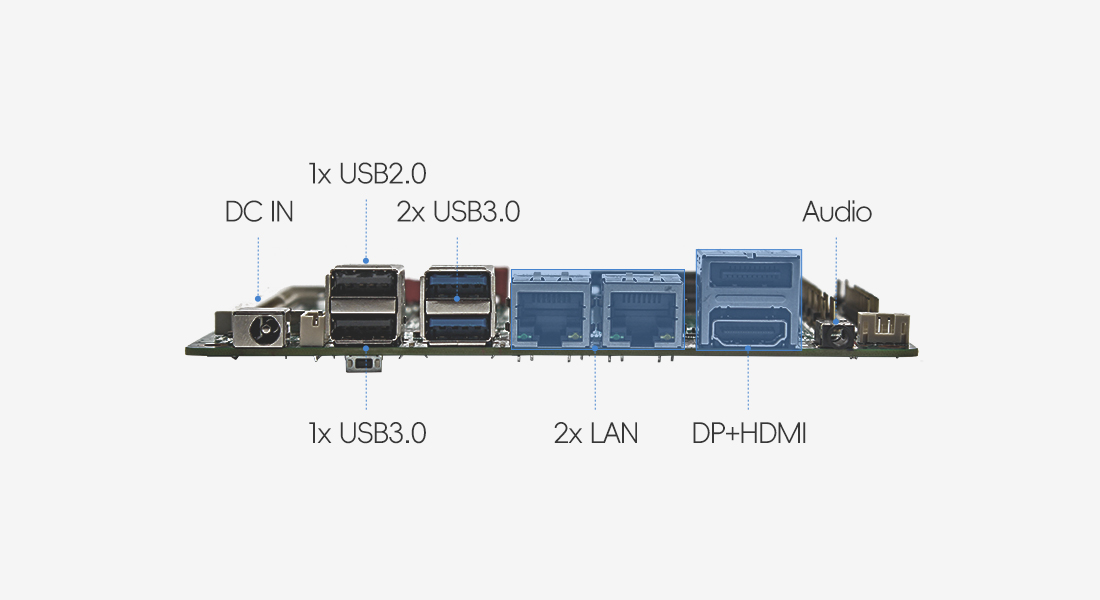

1x DP, 1x HDMI, 1x LVDS/eDP
1x M.2 E-Key, Supports Wi-Fi module
2x GbE LAN, Supports PXE, WOL
3x USB3.0, 3x USB2.0, 8bit GPIO, 1x Audio
2x RS-485, 4x RS-232, 1x LPC
Power Input: 12V/19V DC-IN
| 处理器 | CPU | Intel® Core™ i5-4200U Intel® Core™ i7-4500U |
| Core Number | 2 2 | |
| # of P-cores | ||
| # of E-cores | ||
| # of Low Power E-cores | ||
| Thread Number | 4 4 | |
| Performance-core Turbo Frequency | ||
| Efficient-core Turbo Frequency | ||
| Low Power Efficient-core Max Turbo Frequency | ||
| Max Turbo Frequency | 2.60 GHz 3.00 GHz | |
| Performance-core Base Frequency | ||
| Efficient-core Base Frequency | ||
| Low Power Efficient-core Base Frequency | ||
| Processor Base Frequency | 1.60 GHz 1.80 GHz | |

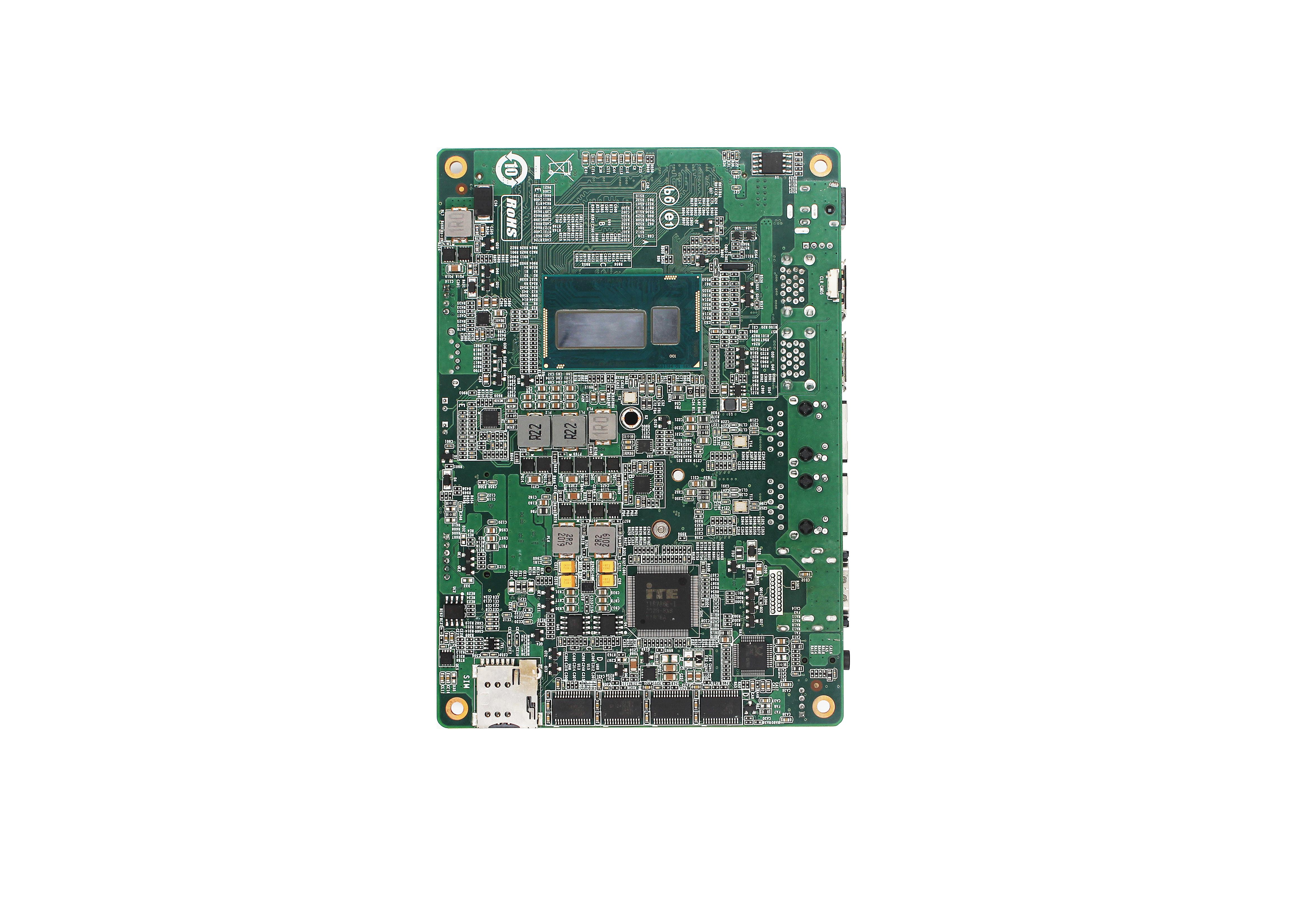

| Socket | FCBGA1168 | |
| Chipset | / | |
| NPU | ||
| Cache (MB) | 3 MB Intel® Smart Cache 4 MB Intel® Smart Cache | |
| CPU TDP | 15 W | |
| BIOS | AMI | |
| 内存 | Technology | Single channel DDR3L 1333/1600 MHz |
| Max capacity | 8 GB | |
| ECC Support | No | |
| Socket | 1x SO-DIMM 204Pin | |
| Internal Memory | ||
| 显示 | Controller | Intel® HD Graphics 4400 |
| Graphic Engine | DirectX 11.2/12, OpenGL 4.3 | |
| H/ W Video Codec | ||
| LCD (TTL/ LVDS/ eDP) | 1x LVDS/eDP | |
| ADI (BNC/ VGA/ DVI-I) | ||
| DDI (DVI-D/ HDMI/ DP) | 1x DP, 1x HDMI | |
| Multiple Display | 3 | |
| 以太网控制器 | Controller | LAN 1: Intel® Ethernet I211AT LAN 2: Intel® Ethernet I211AT |
| Speed | LAN 1: 10/100/1000 Mbps LAN 2: 10/100/1000 Mbps | |
| Connector | 2x RJ45 | |
| 音频 | Audio Interface | HD Audio |
| CODEC | Realtek, High Definition Audio (HD) | |
| Amplifier | 2x 3W, L&R | |
| Connector | 1x CTIA 2 in 1 Audio Jack | |
| 扩展 | PCI Express x16 | |
| PCI Express x8 | ||
| PCI Express x4 | ||
| PCI Express x2 | ||
| PCI Express x1 | ||
| PCI | ||
| PEG Express x8 | ||
| PEG Express x4 | Type 2230: Wi-Fi/BT | |
| Mini PCIe | ||
| M.2 Key-E | ||
| M.2 Key-B | Micro SIM | |
| TF card Slot | ||
| SIM Card Slot | ||
| Type-C | 1x LPC | |
| TPM | ||
| Bus interface | 1x SATA3.0 | |
| 存储 | Memory Card | 1x mSATA slot for SSD/4G |
| SATA | ||
| mSATA | ||
| M.2 Key-B | ||
| M.2 Key-M | ||
| RAID | 3 | |
| 输入输出 | Display | 3 |
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | 2x RS-485, 4x RS-232 | |
| Type-C | 8bit | |
| COM Port | ||
| GPIO | 1x LPC | |
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | 1x CPU_FAN | |
| LPT | ||
| Smart Fan | Micro SIM | |
| TF card Slot | ||
| SIM Card Slot | 1x DP, 1x HDMI | |
| Industry Connectors | 2 | |
| 前面板 | Display | 1 |
| RJ-45 | 3 | |
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | 1x CTIA 2 in 1 Audio Jack | |
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 后置面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF Card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 侧面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 其他 | LED Indicators | Support |
| Control | DC | |
| Watchdog Timer | DC Circular plug | |
| 电源 | Power Type | |
| Connector | 12V/19V DC-IN | |
| Power Consumption (Full Load) | Lithium 3V/ 200 mAh | |
| Input Voltage | -20℃ ~ 60℃ （-4℉ ~ 140℉） | |
| Battery | -40℃ ~ 80℃ (-40℉ ~ 176℉) | |
| 使用环境 | Operational Temperature | 10%`95%@40℃ (non-condensing) |
| Non-Operational Temperature | 7，8，8.1，10 | |
| Relative Humidity | Yes | |
| 支持系统 | Microsoft Windows | |
| Linux | ||
| Android | ||
| BSD | ||

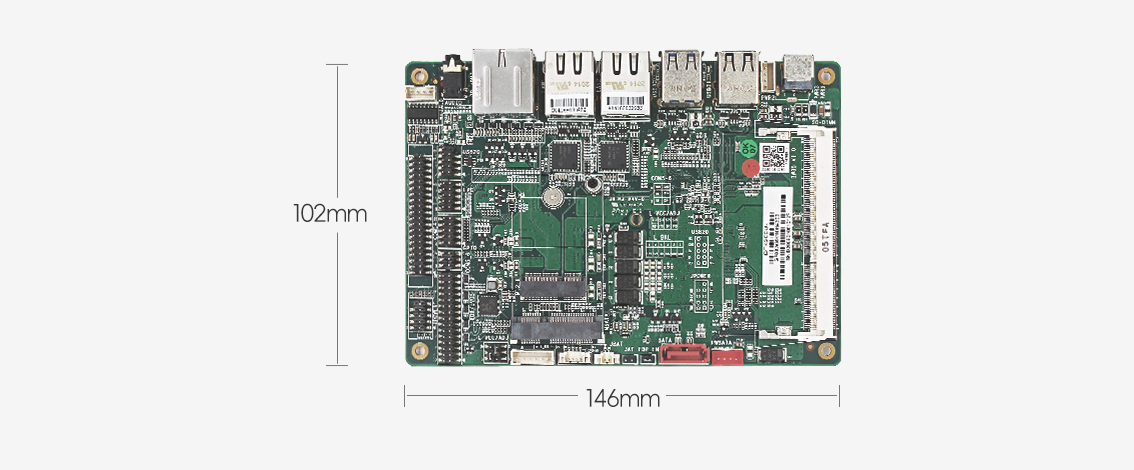

| 国产操作系统 | 146mm x 102mm | |
| 物理规格 | Mounting | |
| Dimension(mm) | ||
| Dimension(WxHxD mm) | ||
| Weight (Kg) |
