Intel® Meteor Lake/Arrow Lake-U/H Processor
Dual Channel SO-DIMM DDR5 up to 96GB
1xM.2_2280,supports NVMe SSD
1xM.2_2280/3042,supports SATA SSD or 4G

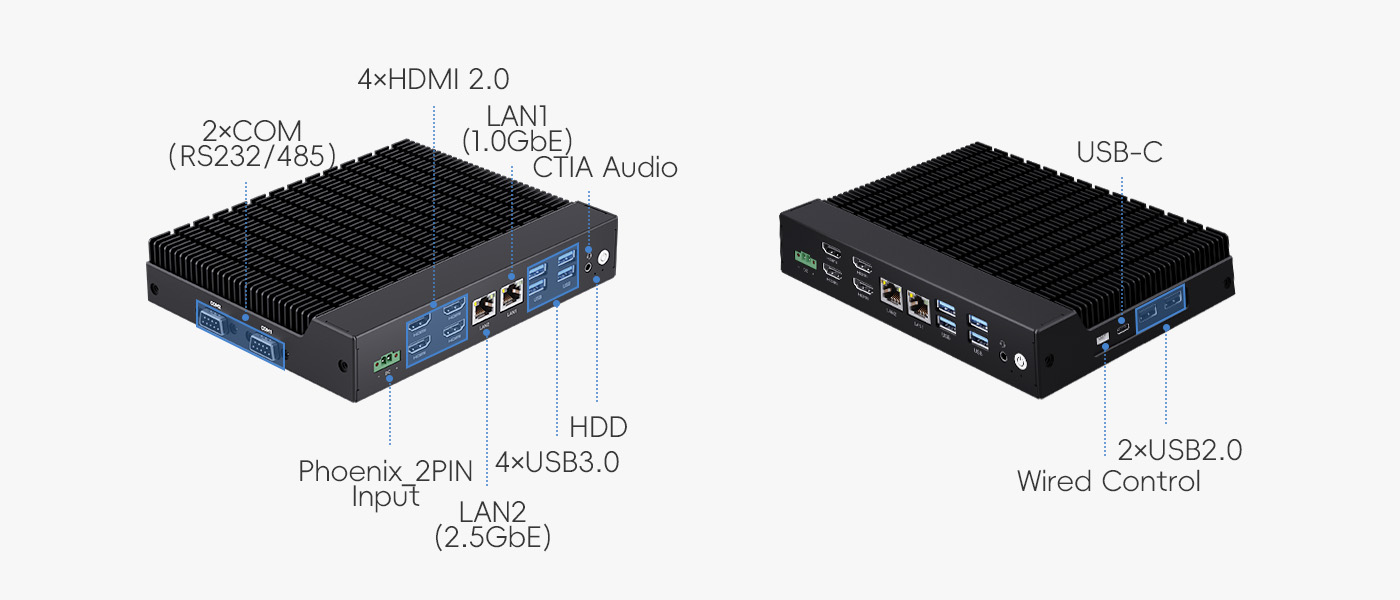

4xHDMI2.0，1xUSB-C(DP1.4 + USB3.2)
1x M.2 E-Key, supports Wi-Fi/BT module
1x1.0GbE LAN(LAN1)，1x2.5GbE LAN(LAN2)
4xUSB3.2 Gen2,2xUSB2.0,1x Wired Control
2xRS-232 or RS-485,1x CTIA Audio
9-36V Phoenix 2_PIN
| 处理器 | CPU | Intel® Core™ Ultra 5 125U Intel® Core™ Ultra 5 125H Intel® Core™ Ultra 5 155H |
| Core Number | 12 14 16 | |
| # of P-cores | 2 4 6 | |
| # of E-cores | 8 8 8 | |
| # of Low Power E-cores | 2 2 2 | |
| Thread Number | 14 18 22 | |
| Performance-core Turbo Frequency | 4.3 GHz 4.5 GHz 4.8 GHz | |
| Efficient-core Turbo Frequency | 3.6 GHz 3.6 GHz 3.8 GHz | |
| Low Power Efficient-core Max Turbo Frequency | 2.1 GHz 2.5 GHz 2.5 GHz | |
| Max Turbo Frequency | 4.3 GHz 4.5 GHz 4.8 GHz | |
| Performance-core Base Frequency | 1.3 GHz 1.2 GHz 1.4 GHz | |
| Efficient-core Base Frequency | 800 MHz 700 MHz 900 MHz | |
| Low Power Efficient-core Base Frequency | 700 MHz 700 MHz 700 MHz | |
| Processor Base Frequency | 1.3 GHz 1.2 GHz 1.4 GHz | |
| Socket | ||
| Chipset | ||
| NPU | Intel® AI Boost | |
| Cache (MB) | 12 MB Intel® Smart Cache 18 MB Intel® Smart Cache 24 MB Intel® Smart Cache | |
| CPU TDP | Processor Base Power: 15 W, Maximum Turbo Power: 57 W, Minimum Assured Power: 12 W Processor Base Power: 28 W, Maximum Turbo Power: 115 W, Minimum Assured Power: 20 W Processor Base Power: 28 W, Maximum Turbo Power: 115 W, Minimum Assured Power: 20 W | |
| BIOS | AMI | |
| 内存 | Technology | Dual Channel DDR5 5600 MHz |
| Max capacity | 96GB | |
| ECC Support | NO | |
| Socket | 2x SO-DIMM 262Pin | |
| Internal Memory | ||
| 显示 | Controller | Intel® Graphics Intel® Arc™ graphics Intel® Arc™ graphics |
| Graphic Engine | DirectX 12.2, OpenGL 4.6, OpenCL 3.0 | |
| H/ W Video Codec | ||
| LCD (TTL/ LVDS/ eDP) | ||
| ADI (BNC/ VGA/ DVI-I) | ||
| DDI (DVI-D/ HDMI/ DP) | 4x HDMI2.0: Up to 4K@60Hz, 1x USB-C (DP1.4) | |
| Multiple Display | quadruple | |
| 以太网控制器 | Controller | LAN 1: Intel Ethernet I219 LAN 2: Intel Ethernet I226 |
| Speed | LAN 1: 10/100/1000 Mbps LAN 2: 10/100/1000/2500 Mbps | |
| Connector | 2x RJ45 | |
| 音频 | Audio Interface | HD Audio |
| CODEC | Realtek, High Definition Audio (HD) | |
| Amplifier | ||
| Connector | 1x CTIA 2 in 1 Audio Jack | |
| 扩展 | PCI Express x16 | |
| PCI Express x8 | ||
| PCI Express x4 | ||
| PCI Express x2 | ||
| PCI Express x1 | ||
| PCI | ||
| Mini PCIe | ||
| M.2 Key-E | 1x M.2 2230 slot (Wi-Fi/BT, supports CNVi, PCIe & USB signal) | |
| M.2 Key-B | 1x M.2 3042/2280 slot (4G or 2280 SATA SSD) | |
| TF card Slot | ||
| SIM Card Slot | Nano SIM | |
| Type-C | 1x USB-C (DP1.4 + USB3.2) | |
| TPM | (optional) | |
| Bus interface | ||
| 存储 | Memory Card | |
| SATA | ||
| mSATA | ||
| M.2 Key-B | Type 2280/3042: SATA SSD or 4G | |
| M.2 Key-M | Type 2280: NVMe SSD | |
| RAID | ||
| 输入输出 | Display | |
| USB 2.0 | 2 | |
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | 4 | |
| USB 3.2 Gen 2×2 | ||
| Type-C | 1 | |
| COM Port | 2 (2x RS232/485) | |
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| LPT | ||
| Smart Fan | 1x CPU_FAN | |
| TF card Slot | ||
| SIM Card Slot | Nano SIM | |
| Industry Connectors | ||

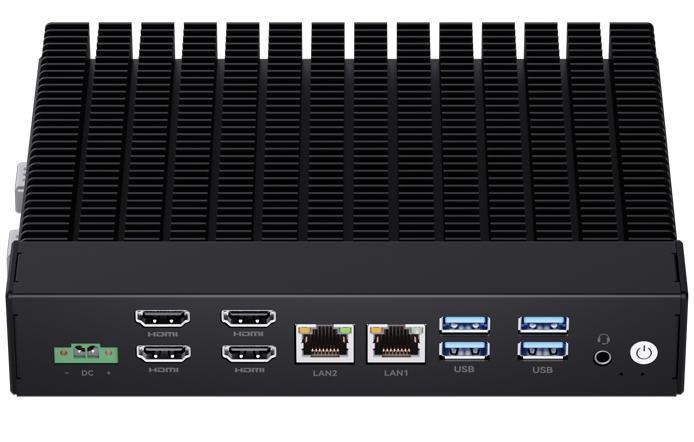

| 前面板 | Display | 4x HDMI 2.0 |
| RJ-45 | 2x RJ45 | |
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | 4 | |
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | 1x CTIA 2 in 1 Audio Jack | |
| LPT | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 后置面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF Card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 侧面板 | Display | |
| RJ-45 | ||
| USB 2.0 | 2 | |
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | 1 | |

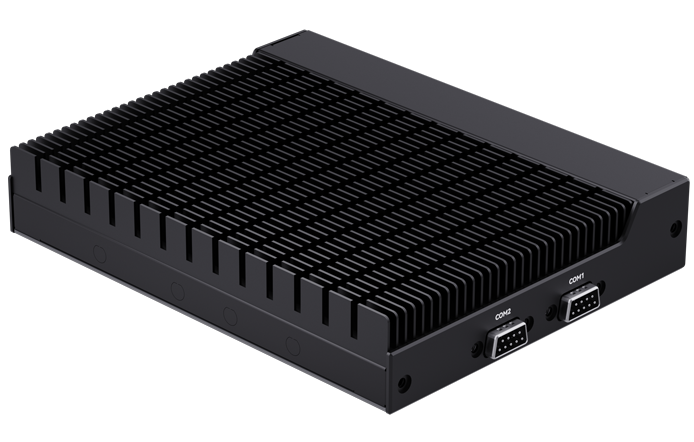

| COM Port | 2 (RS-232/ 485) | |
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 其他 | LED Indicators | HDD LED |
| Control | ON/OFF, Wired Control, CLR_CMOS | |
| Watchdog Timer | Support | |
| 电源 | Power Type | DC |
| Connector | DC Circular plug | |
| Power Consumption (Full Load) | ||
| Input Voltage | 19V DC Input (Optional DC-IN 9-36V Phoenix_2PIN) | |
| Battery | Lithium 3V/ 200 mAh | |
| 使用环境 | Operational Temperature | -20℃ ~ 60℃ （-4℉ ~ 140℉） |
| Non-Operational Temperature | -40 ~ 80 °C (-40 ~ 176 °F) | |
| Relative Humidity | 10%`95%@40℃ (non-condensing) | |
| 支持系统 | Microsoft Windows | Windows 10，Windows11 |
| Linux | yes | |
| Android | ||
| BSD | ||
| 国产操作系统 | ||
| 物理规格 | Mounting | |
| Dimension(mm) | ||

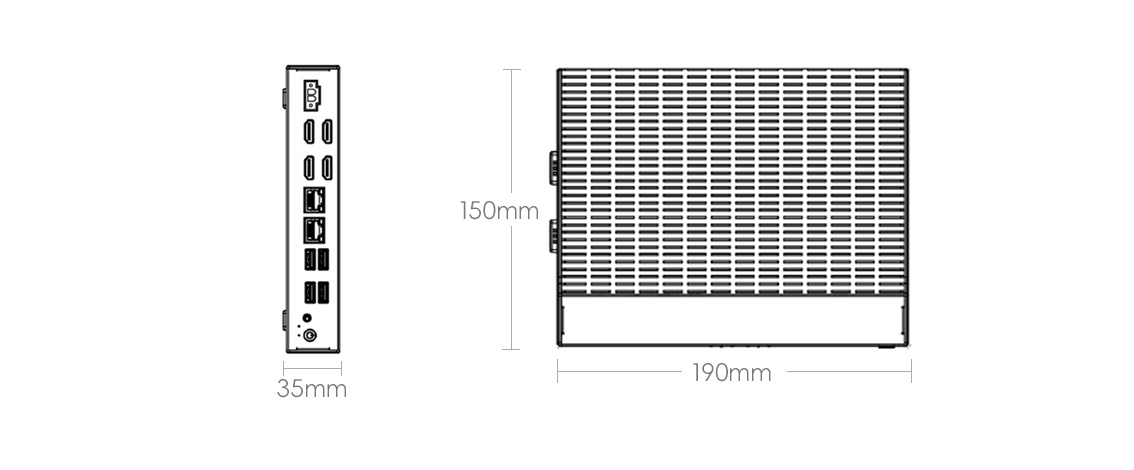

| Dimension(WxHxD mm) | 190mm x 150mm x 35mm | |
| Weight (Kg) | TBD |
